PRODUCTS

Designed in Canada, Assembled in Canada

Descriptions

GLL LED tube with sensor can fulfil enough brightness for people to walk there and drivers to park the cars. It switched to ECO mode (0W, 3W, 6W or 9W) automatically when there are no vehicles or human motion. It can save up to 80% of electrical consumption. ECO mode wattage (0W, 3W, 6W or 9W) of GLL LED tube can be easily adjusted by remote controller. GLL LED tube is uniquely designed into modularity which makes it easier to be repaired, and maintenance cost can be further reduced in the long run.

GLL LED tube is designed and assembled in Canada.

T8 LED Tube with Infrared Sensor / Radar Sensor

SERIES: GLL-T8D24SI/SR


Features

  • Sensor Built-in

  • Dimmable

  • Remote Control

  • Modular Design

  • Repairable

  • Up to 80% Power Saving

  • High Illumination

  • Long Lifetime

  • Humming Free

  • CSA Certified

  • DLC Certified

Specifications

  • Regular Mode Power: 18W

  • Eco Mode Power: 0W, 3W, 6W, 9W

  • Input Voltage: DC24V

  • Color Temperature: W (3000k), N (4000k), C (5000k)

  • Light Output (Lumen): 2160 Lm (18W/full power), 360 Lm (3W dimming), 720 Lm (6W dimming), 1080 Lm (9W dimming)

  • Motion Sensor:  Infrared / Radar

  • Detectable Distance: 5 Meters / 10 Meters

  • Timer (on / dim period): 60 Seconds

  • Reaction Time: 0.5 Second

  • Color Rendering Index: >75

  • Outer Material: PC and Aluminum

  • Lifespan: >70,000 Hours

  • Working Conditions: Indoor, -30°C to 50°C

  • Net Weight: 0.35 Kg

Descriptions

GLL LED tube with sensor can fulfil enough brightness for people to walk there and drivers to park the cars. It switched to ECO mode (0W, 3W, 6W or 9W) automatically when there are no vehicles or human motion. It can save up to 80% of electrical consumption. ECO mode wattage (0W, 3W, 6W or 9W) of GLL LED tube can be easily adjusted by remote controller. GLL LED tube is uniquely designed into modularity which makes it easier to be repaired, and maintenance cost can be further reduced in the long run.

The security camera works very well at 3W Eco mode in the underground parking lot as well as the building code is fully met.

GLL LED tube is designed and assembled in Canada.

T8 LED Tube

SERIES: GLL-T8D24


Features

  • Adjustable Output Wattage

  • Remote Control

  • Modular Design

  • Repairable

  • Up to 40% Power Saving

  • High Illumination

  • Long Lifetime

  • Humming Free

  • CSA Certified

  • DLC Certified

Specifications

  • Wattage: 18W/16W/14W/12W

  • Color Temperature: W (3000k), N (4000k), C (5000k)

  • Light Output (Lumen): 2160 Lm/ 1920Lm/ 1680 Lm/ 1440 Lm

  • Color Rendering Index: Ra>/75

  • Outer Material: PC and Aluminum

  • Lifespan: >50,000 Hours

  • Working Conditions: Indoor, -30°C to 50°C

  • Net Weight: 0.33 Kg

Descriptions

Specially designed for offices, schools, hospitals, conference etc. It was certified by CSA and DLC. There are 4 levels of output wattage. Users can choose different brightness at different area but it doesn’t have dimming function for this model. It can be easily adjusted to any level output by remote controller. It can save up to 40% of electrical consumption compared to T8 fluorescent lamp. GLL LED tube is uniquely designed into modularity which makes it easier to be repaired, and maintenance cost can be further reduced in the long run.

GLL LED tube is designed and assembled in Canada.

Driver for T8 LED Tubes

SERIES: GLL-Driver


Features

  • High Power Factor

  • Long Lifetime

  • Wide Input Voltage

  • Waterproof

  • CSA Certified

  • DLC Certified

Specifications

  • Regular Mode Power: 48W

  • Input Voltage: AC90V-370V/AC90V-277V

  • Input Frequency:50/60 Hz

  • Output Voltage: 24VDC

  • Output Current: 2A

  • Power Factor: >0.98

  • Body Material: Aluminum / Plastic

  • Working Conditions: -30°C to 50°C

  • Net Weight: 0.50 Kg

Descriptions

It is designed for the GLL LED tubes, and certified by CSA and DLC. The GLL LED driver has a wide range of input voltages (AC90V-AC 370V). Its output voltage is DC 24 V within safe voltage. It has an aluminum cover which effectively dissipates heat.

Remote controller


Descriptions

To achieve the maximum energy savings, different settings were required to different places. GLL LED with sensor can achieve that by the remote controller, it can set up the tube to Eco mode (0W, 3w, 6w, and 9w) which compares to the full power of 18 watts.

Here is the instruction of the remote controller.

GLL LED T8 Tube Series

Globe LED Lighting (GLL) designed the LED tube with sensor, which is specialized for underground parking garages, corridors and stairwells. It has been  certified by CSA and DLC.

190724_GlobalSolarEnergy-Products_021 (1) (1)
190724_GlobalSolarEnergy-Products_021 (1) (1)

press to zoom
T8 LED Tube
T8 LED Tube

press to zoom
T8 LED Tube
T8 LED Tube

press to zoom
190724_GlobalSolarEnergy-Products_021 (1) (1)
190724_GlobalSolarEnergy-Products_021 (1) (1)

press to zoom
1/4

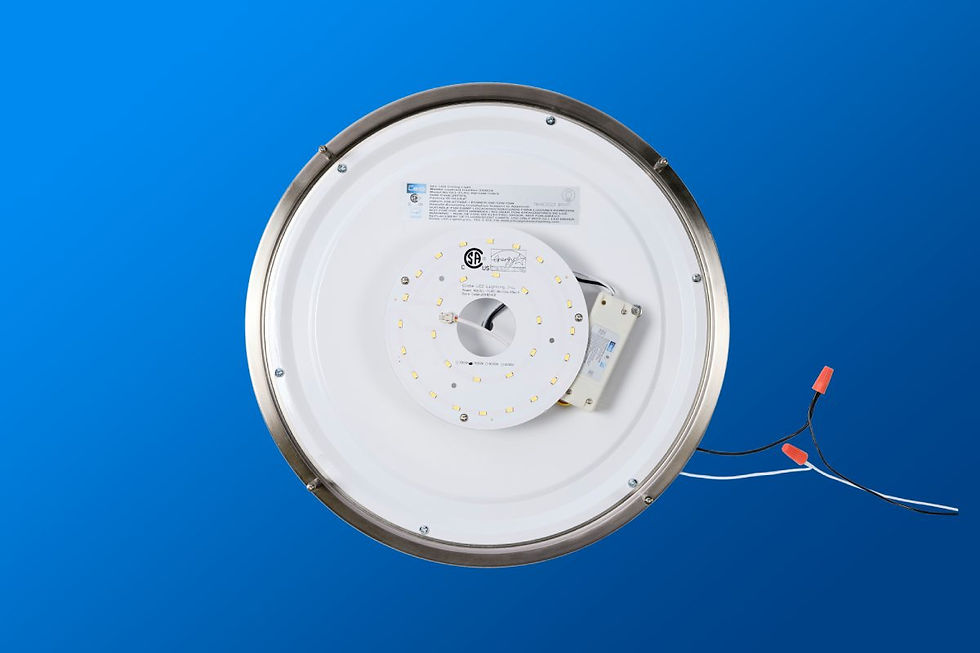

Ceiling Mounted LED Light

The GLL-CLRC LED Light is designed for replacing traditional CFL and incandescent ceiling mounted lights. It can save up to 50% of electrical consumption,

led3
led3

press to zoom
led2
led2

press to zoom
led3
led3

press to zoom
1/2

GLL-CLRC LED Light

SERIES: GLL-CLRC-9W/12W/15W

GLL-CLRC LED.jpeg

Features

  • High Power Factor

  • High Illumination

  • Long Lifetime

  • Magnet Installed

  • Safe Output Voltage

  • CSA Certified

  • Energy Star

Specifications

  • Wattage (Watts): 9W / 12W / 15W

  • Input Voltage: AC90V-277V

  • Input Frequency: 50/60 Hz

  • Power Factor: >95

  • Output Voltage of Diver: 36 VDC

  • Output Current of Diver: 250 mA / 350 mA / 420 mA

  • Color Temperature: 3000K, 4000K, 5000K

  • Light Output: 1125 Lm, 1500 Lm, 1875 Lm

  • Color Rendering Index: 75

  • Lifespan: >50,000 hours

  • working Conditions: Indoor / -30°C to 50°C

  • Net Weight: 0.25 Kg

Descriptions

The GLL CLRC LED light is designed for canopy light retrofits and certified by CSA and Energy star. It has very uniform beams, energy saving is more than 50%, and the LED chips are all facing down. It is very easy to install due to its magnetic design.
